Illumination & LED Optics Design | OFH
Your partner for custom LED optic design. TIR lenses, reflectors and light pipes

Your partner for custom LED optic design. TIR lenses, reflectors and light pipes

Illumination Design

15+ years

of work history in lighting and illumination design

500+ unique

lighting and illumination systems

endless variations

of materials, light sources and production methods

Working together

What you provide:

  • LED, light source model details

  • Beam pattern required

  • Mechanical space available

  • Preferred design type (reflector,TIR, lightpipe)

What we provide:

  • Zemax to design the right optic for your application

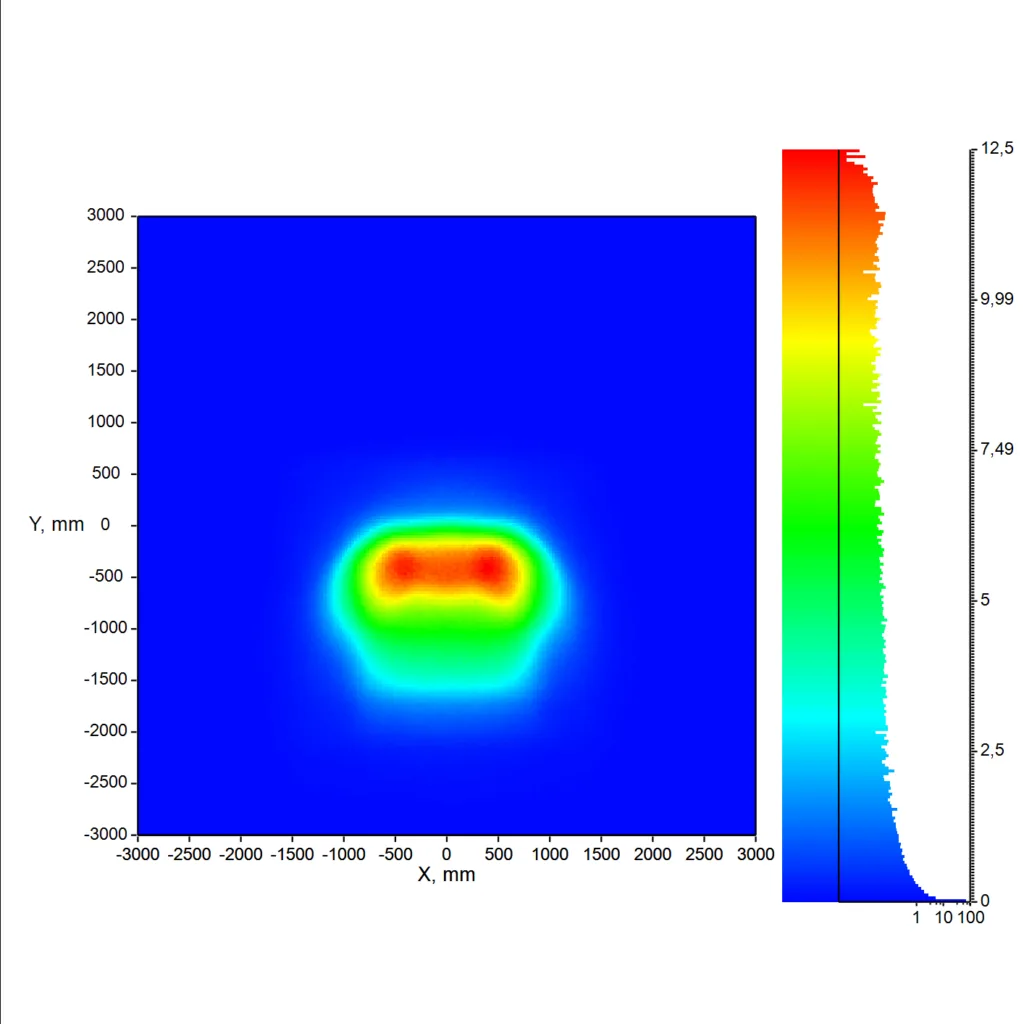

  • Expected performance reports based on the simulation of millions of rays of light from the emission source to the target pattern

  • CAD models of your part

  • Prototypes and budgets for volume production

Our clients’ illumination & lighting products

Office Lighting

Office Lighting

Overhead, Wall Wash

Human Eye Illumination

Human Eye Illumination

Mobile Phone Attachments

Mobile Phone Attachments

Aircraft Lighting

Aircraft Lighting

Runway, Interior, Signal, Emergency

Home lighting

Home lighting

Commercial lighting

Commercial lighting

Light pipes

Light pipes

Buttons, Decorative, Indicators, Automotive Pointers

Medical lighting

Medical lighting

Head Lamps, Endoscopic, Fiber Optic

Automotive lighting

Automotive lighting

Decorative, DOT Standards

Roadway lighting

Roadway lighting

IES Type II, Type III, Type IV, Type V, EN 13201

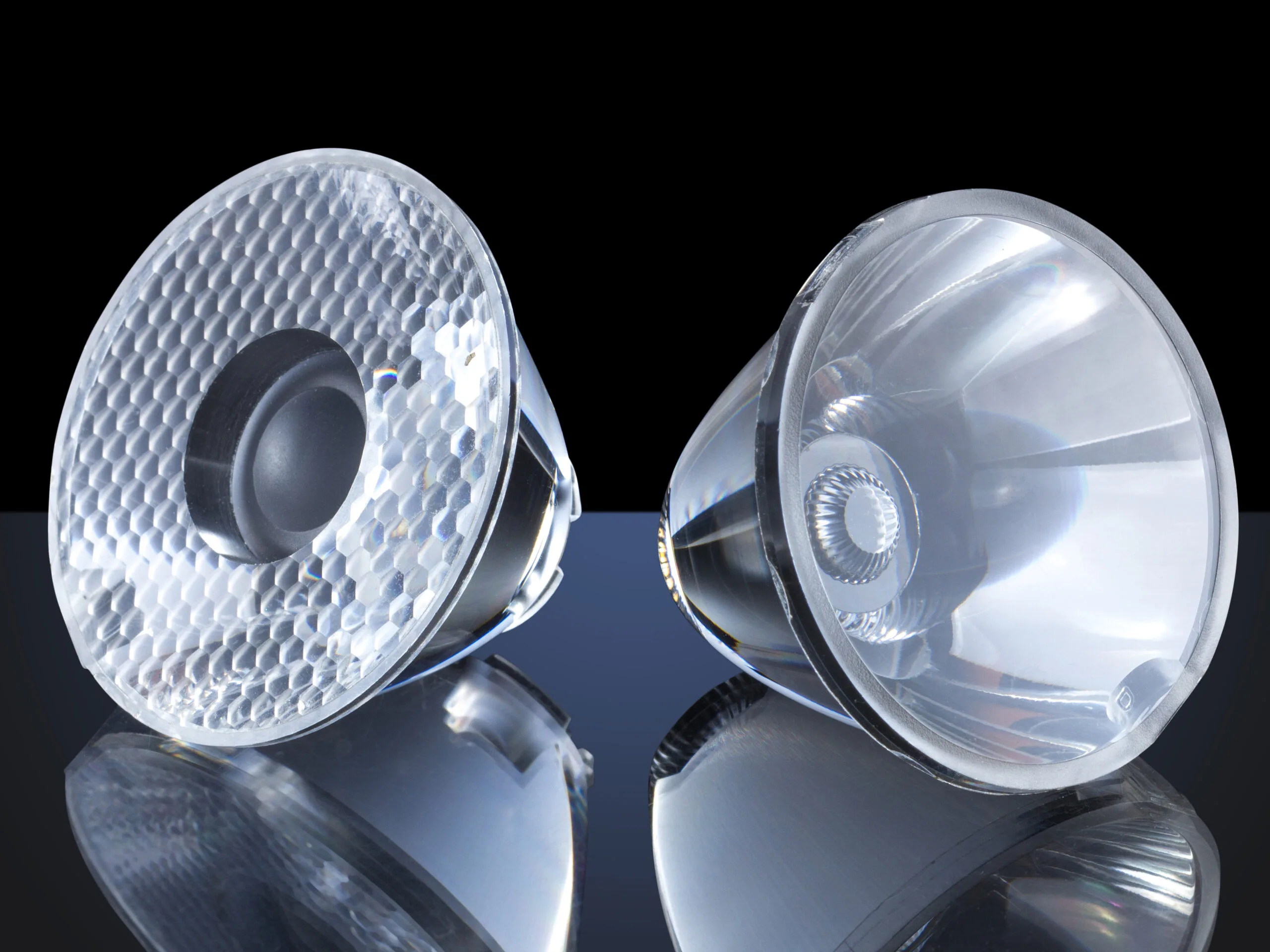

Our manufacturing supply chain matches volume, material, and design to your needs. The most common delivered designs are custom TIR lenses and reflectors

Your partner for custom LED optic design. TIR lenses, reflectors and light pipes 1

Launch your illumination design

Common production methods for illumination optics

3D printing

3D printing

Machining

Machining

Diamond turning

Diamond turning

Grinding and polishing

Grinding and polishing

Injection molding plus vacuum deposition of aluminium

Injection molding plus vacuum deposition of aluminium

Forming

Forming

Injection molding

Injection molding

What our clients say

Medical diagnostic client

Overall, I think these lenses have met or exceeded our expectations in every way.

– Medical diagnostic client

Semiconductor equipment client

Just as a note to your team, I was very happy with this design and system. It was more than I expected and it works very well. Great prototype and delivery was pretty fast.

– Semiconductor equipment client

Bar code device client

Optics for Hire was a great company to work with. At the time, I had no experience developing optical systems before, and OFH was able to guide me through the process of technical specifications through to manufacturing. They were fast and efficient, noting any concerns or limitations with the designs.

– Bar code device client

Industrial distance measurement client

I want to take this opportunity to comment how impressed I am with OFH. Your team is moving so fast, I feel like a turtle. Also, it’s been noted that every time we ask something, our question is promptly answered and your team often brings up aspects that we haven’t considered.

– Industrial distance measurement client

Medical device client

It was my pleasure to meet and work with the people of Optics For Hire. Our advanced ophthalmoscope is comprised of over a dozen lenses and required precise optical engineering and construction. It was not a simple project.

– Medical device client

Materials used

Sapphire

Sapphire

Glass

Glass

Alanod

Alanod

Anodized Aluminum

Aluminum

Aluminum

Polycarbonate

Polycarbonate

PMMI

PMMI

PMMA

PMMA

Acrylic
